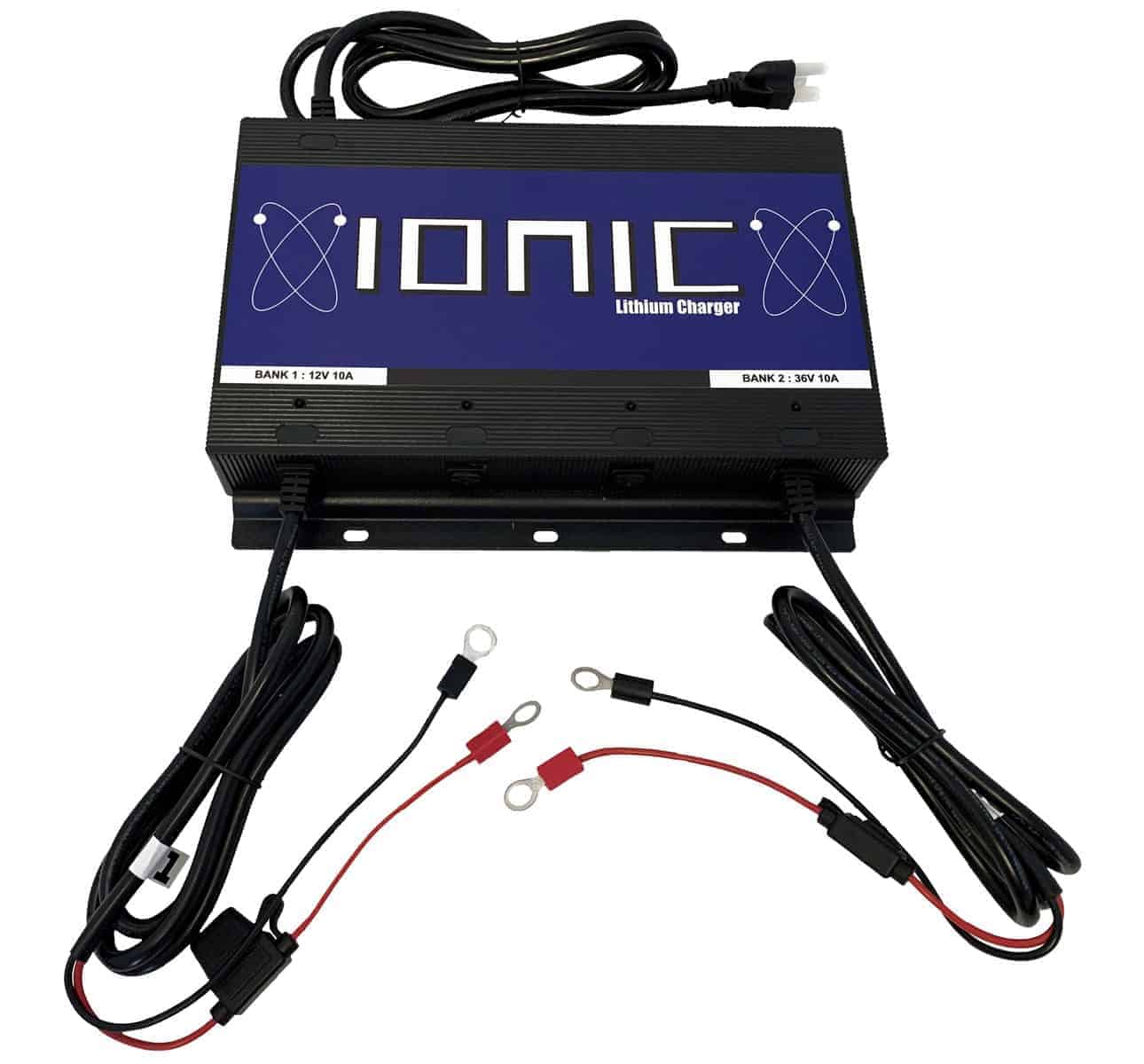

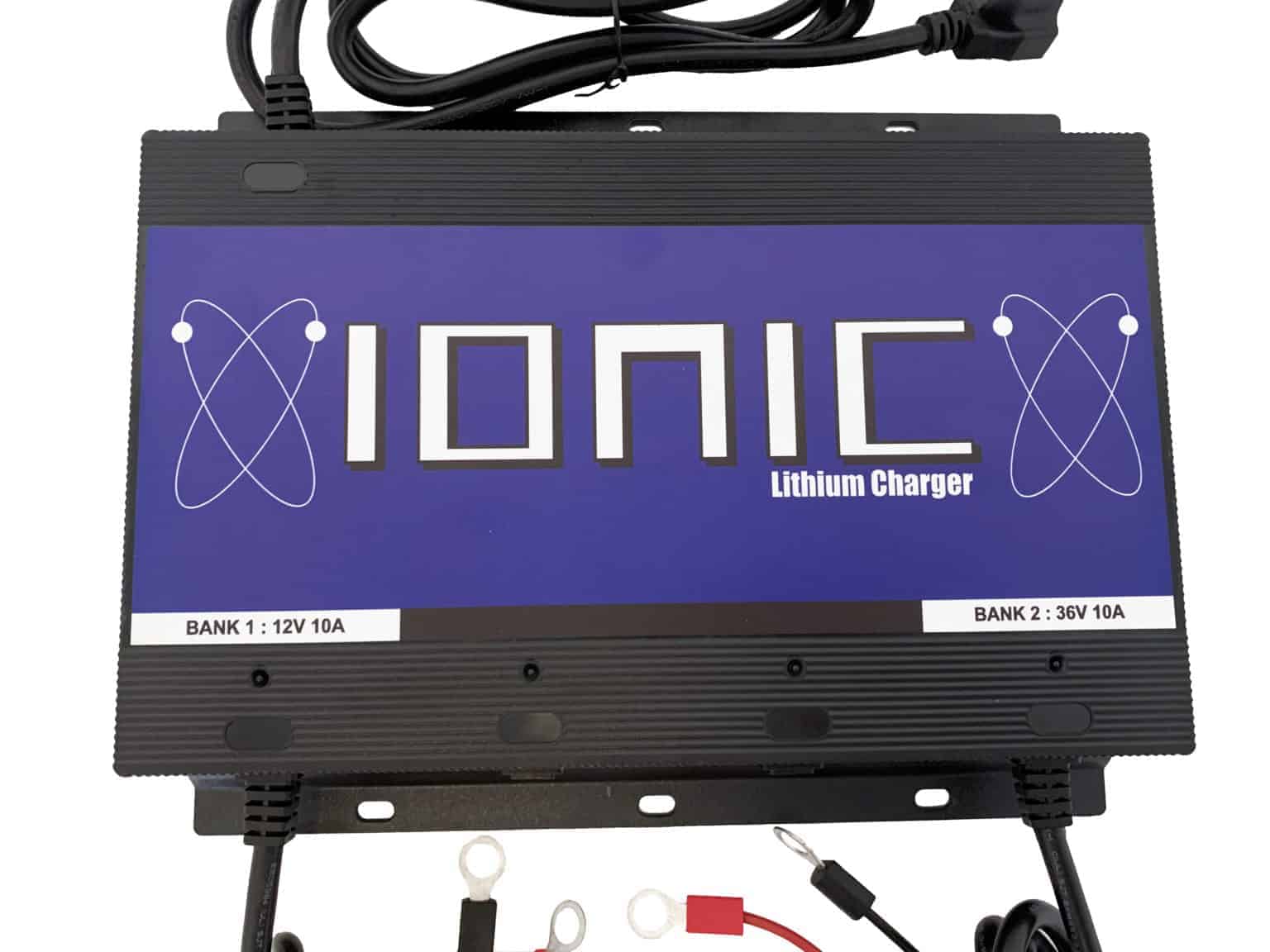

This charger is built with 2 separate banks, with a 10A current on each channel. One handles 12V batteries, and the other is for 36V. Here are additional specifications:
Input | 110V/120VAC at 7.5A |
Output Power | 584W |
Charge Voltage | 14.6V |
Float Voltage | 13.8V |
Current | 10A each Channel |
Weight | 11 lbs |
Size | 12 in x 9.5 in x 2 in |
You may also use this charger for 48V, 36V, 24V or 12V systems. To charge two 12V and one 36V battery, you can place your two 12V batteries in parallel.
