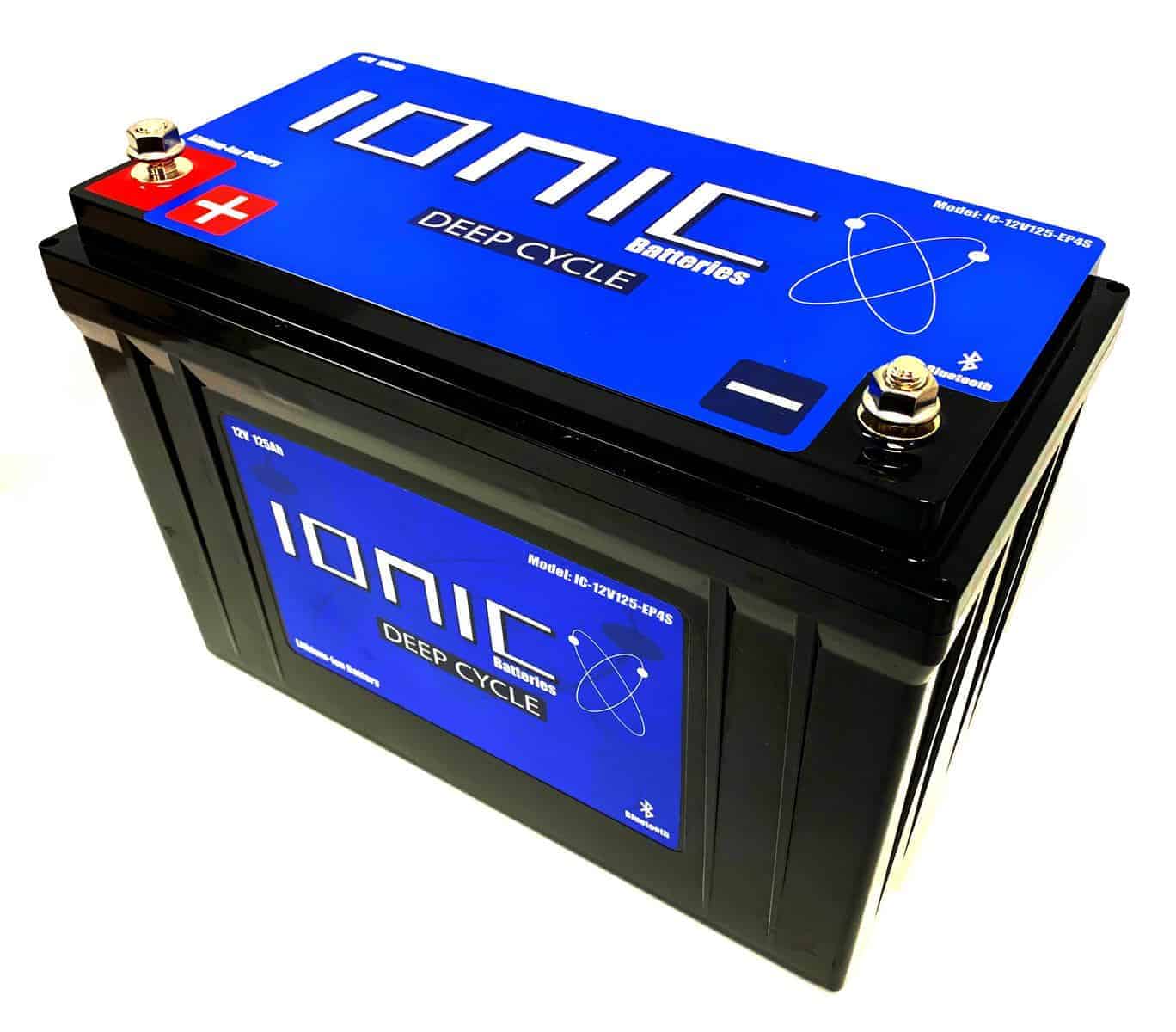

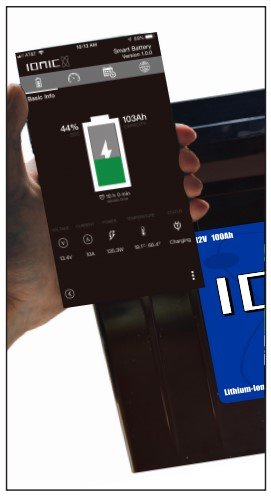

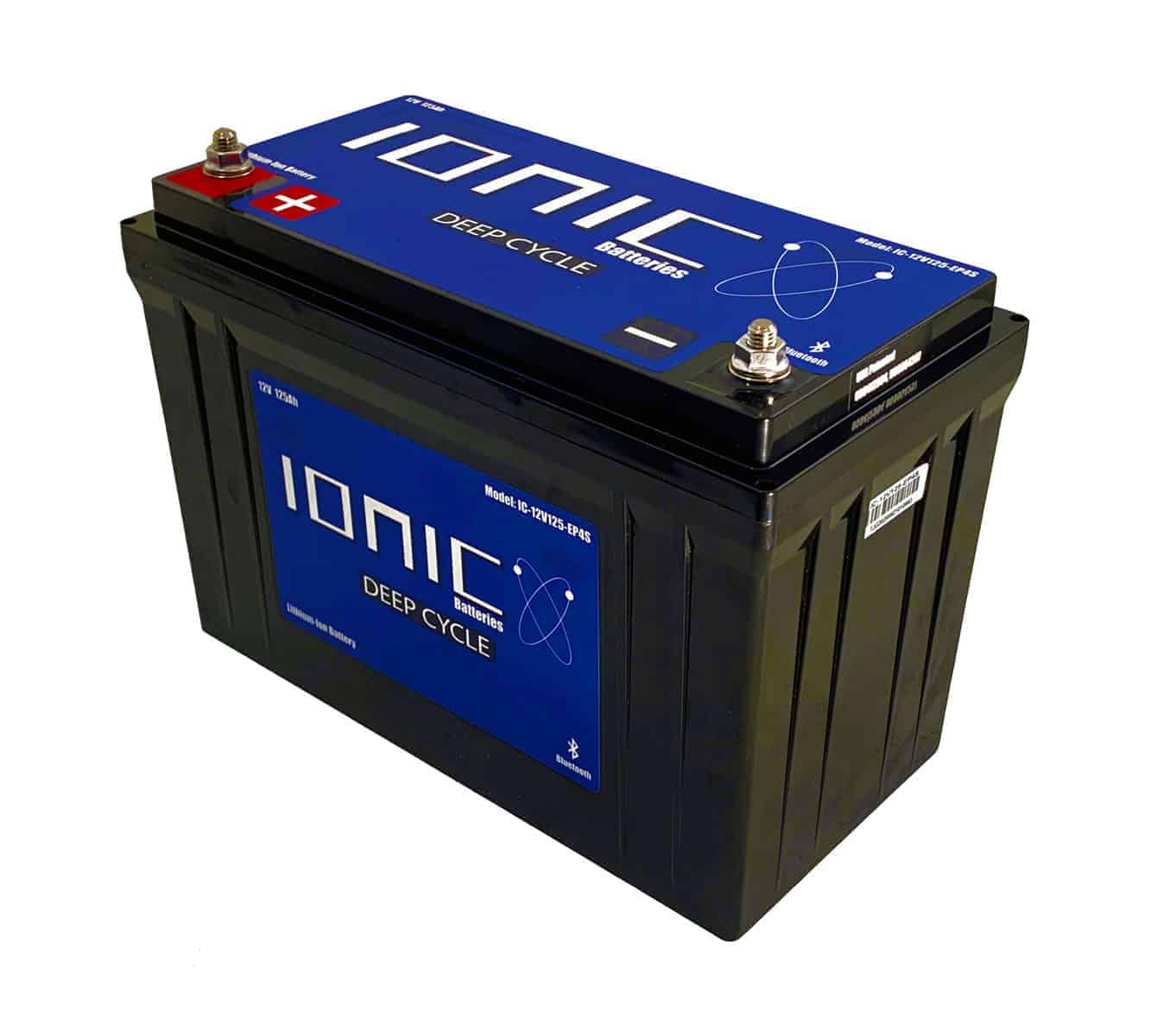

Ionic Deep Cycle Lithium Battery 12V125-EP has 12 volts and a 125Ah capacity and is perfect for powering your deep cycle systems. Can be used as a starting – dual Lithium battery comparable to 900A cranking amps for 250hp engines. Ionic Deep Cycle has an internal microprocessor controlled battery management system (BMS) that monitors the key operational parameters during charging and discharging, such as voltages, currents and internal temperatures.
Magnuson-Moss Warranty Act: A vehicle manufacturer cannot legally void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)). Ionic Batteries have proprietary software embedded in the Battery Management Systems that make them 100% compatible with Yamaha or Mercury 250 hp motors.
Model | IC-12V125-EP4S |
Voltage | 12V |
Capacity | 125Ah, 1600Wh |
Chemistry | LiFePo |
Weight | 34.2 lbs (15.5 kg) |
Dimensions | 12.55″ (L) x 6.5″ (W) x 9.2″ (H) 319x165x234mm |
Life Cycles | 3,000 @ 80% DOD |
BMS | Yes (Internal) |
Max Charge Voltage | 14.6±0.1V |
Discharge Cut-Off Voltage | ~8.0V |
Max Charge Current | 50A |
Max Discharge Current | 100A |
Crank Amps | 900A |
Pulse Discharge Current | 500A (3S) |
Operating Temperature | -20~60℃ -4℉~140℉ |
BCI Group Size | 31 |
Terminal | 3/8-16 UNC Thread |
Water Rating | Water Resistant |

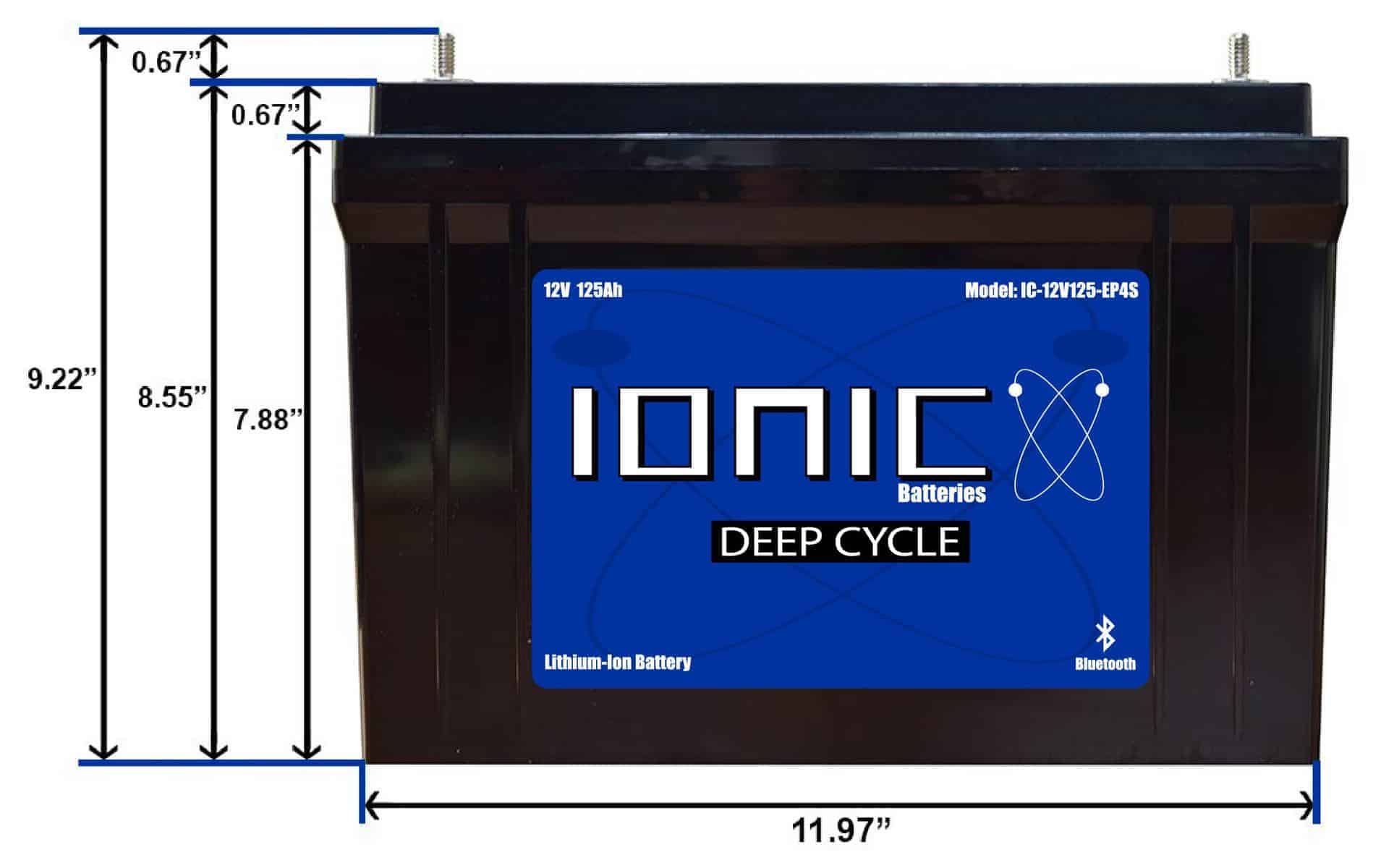

Widest spots. The battery does taper on the very base bottom.
Length : 12.52 in. => 12 1/2 in. => 318mm
Width: 6.496 in. => 6 1/2 in. => 165mm
Height (studs base): 8.465 in. => 8 15/32 in. => 215mm
Height (studs top): 9.2 in. => 9 13/64 in. => 233mm
