Trident Marine 5/8" x 50 Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red [166-0586]

Regular price
$62.95
Sale price
$62.95
Regular price
$123.27
Terms & conditions
Details

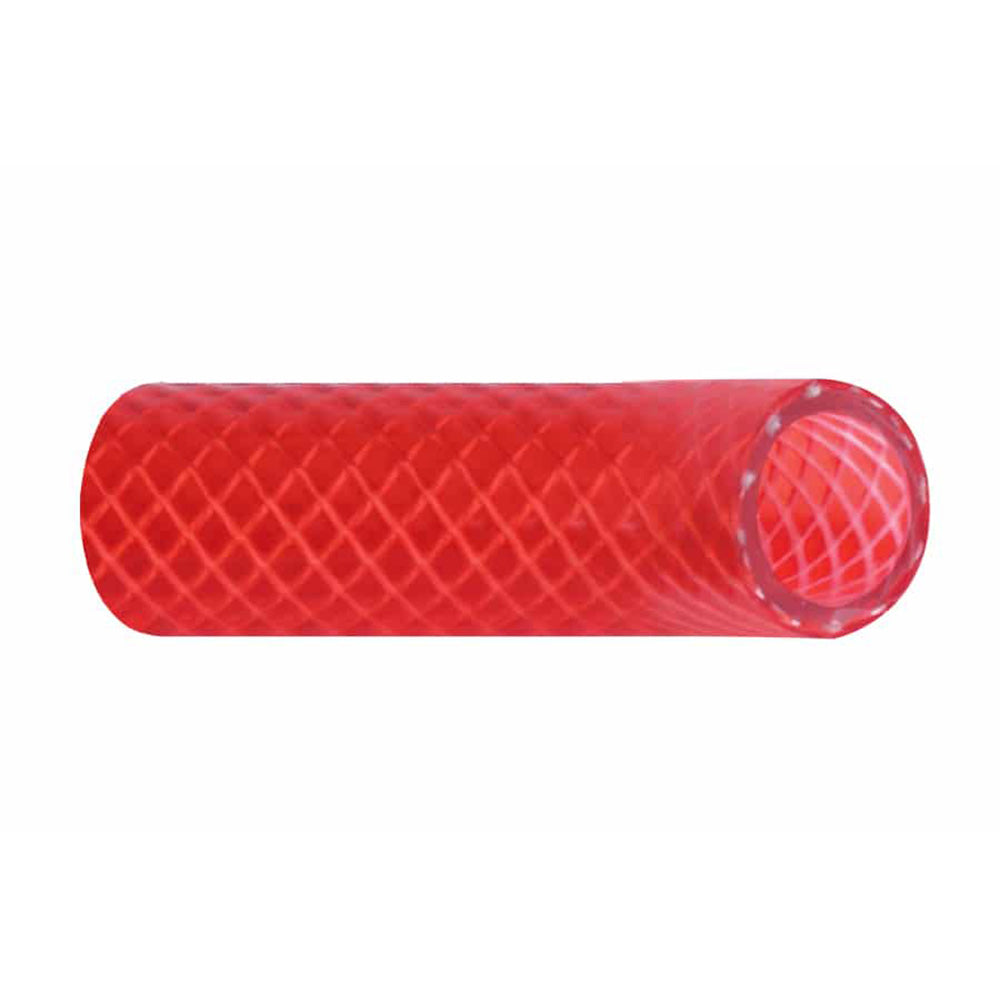

5/8" x 50' Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

  • The Red cover allows for easy identification of "Hot Water" lines on your boat
  • Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
  • This hose is safe for use with drinking water

Application:

  • Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

  • Tube & Cover: Clear FDA tube
  • Color: Red Transparent
  • Reinforcement: Polyester
  • Temperature Range: -18°F to 149°F (-28°C to 65°C)
  • Length: 50’ (15.24m)

Specifications:

  • Inner Diameter: (inch) 5/8" / (mm) 15.9
  • Outer Diameter: (inch) .866 / (mm) 22.5
  • Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
  • Bend Radius: (inch) 1.26" / (mm) 32

*Burst Pressure is 4 x Working Pressure

Specifications:

  • Length (Feet): 50.0
  • ID Diameter (inches): 5/8"
  • Box Dimensions: 5"H x 18"W x 18"L WT: 9.4 lbs
  • UPC: 704917024042

Quick Guide (pdf)
