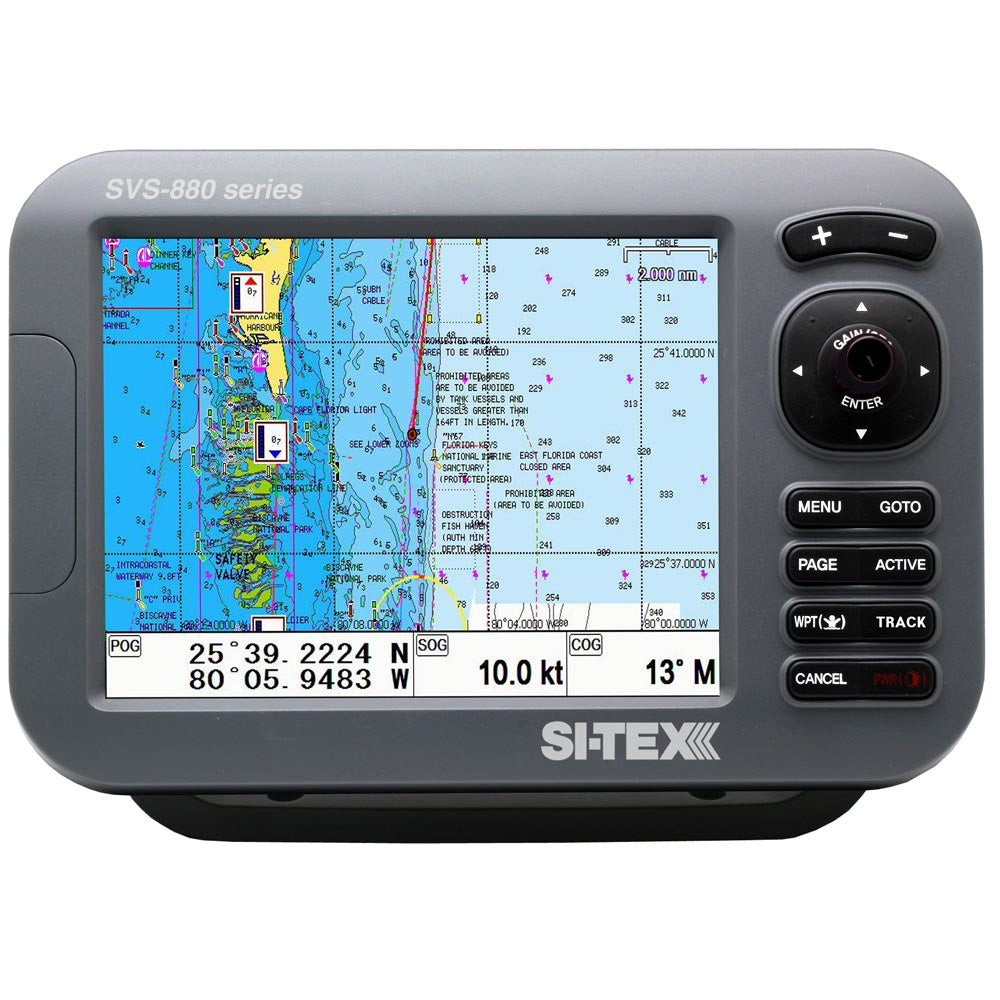

SI-TEX GPS Chart-Dual Frequency 600W Sonar System - 8 Color LCD w/Internal GPS Antenna C-MAP 4D Card [SVS-880CF+]

Regular price
$1,371.95
Sale price
$1,371.95
Regular price
$1,399.00
Terms & conditions
Details

GPS Chart-Dual Frequency 600W Sonar System - 8” Color LCD with Internal GPS Antenna & C-MAP 4D Card

The SI-TEX SVS-880CF+ is a powerful big-screen performer designed to fit every boat and budget. This compact chartplotter and chartplotter/sonar system delivers the goods for any vessel, from center console skiffs to sailboats to light commercial boats.

Differences between SVS-880CF & SVS-880CF+

The SVS-880CF+ has an updated Android processor and only uses C-MAP 4D cartridges.

Features:

  • Internal GPS Antenna
  • 8" high-resolution color LCD and compact case
  • 52-channel GPS
  • Global GPS compatibility
  • Standard equipped with internal GPS antenna, no need to mount a separate GPS antenna.
  • 600-watt dual frequency 50/200 kHz Digital Echo Sounder
  • Brilliant LED backlighting provides excellent sunlight readability
  • Easy, intuitive operation and control
  • Video input for underwater and on-deck cameras

General Specifications:

  • Display Screen SVS-880CF+: 8-inch Color LCD with LED backlight
  • Resolution SVS-880CF+: SVGA (800 x 600 pixels)
  • Power Supply: DC 12V-36V(±10%) SVS-880: 4W(without sonar)/ 6W(with sonar
  • Operating Temperature: Display Unit -15 degrees C to +50 degrees C, Antenna Unit -25 degrees C to +70 degrees C
  • Performance Standard: IMO Resolution MSC.112(73)

Chartplotter Specifications:

  • Display Method: Mercator Projection
  • Display Mode: True motion / N/S/E/W up / Course up / Head up
  • Latitude Limits: Between 85 degrees N to 85 degrees S
  • Map Scale: 0.05nm to 1500nm
  • Map Datum: WGS-84 6
  • Waypoints: 20,000 points *Total of 16 colors and 16 icons are selectable for each point with a name tag (6 alphanumeric characters)
  • Track Points: 50,000 points (2 types)
  • Route: Max capacity 100 Routes *20 WPTs per each Route. Each with name tags (8 alphanumeric characters)
  • Draw Point: 1,000 points
  • Area Name: 1,000 points
  • Output Data: NMEA-0183
  • Input Data: NMEA-0183
  • Alarm Arrival, Anchor, XTE, Interval timer, Userline

GPS Receiver Specifications:

  • GNSS Receiver Capabilities: GPS - L1 C/A code, GLONASS - L1OF/, QZSS - L1 C/A code, Galileo - E1B/E1C/L1
  • Number of Channels: 52 channels
  • Horizontal Positioning Accuracy: Autonomous 2.5m (CEP 50%)
  • Sensitivity: Acquisition -148 dBm, Tracking -165 dBm, Reacquisition  -162 dBm, Nav Update 1Hz, 5Hz)
  • Support: DGPS, SBAS (EGNOS,WAAS, MASA, GAGAN)

Sonar Specifications:

  • Display Mode: Normal (single/dual-frequency), Bottom-lock.  Bottom-zoom, A-scope
  • Frequency 50 and 200 KHz (single or dual)
  • Output Power: 600W
  • Range Speed: 600W - 2.5m - 600m
  • Image Speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop
  • Rejection: Interference rejection: 3 levels, Noise rejection: 4 levels
  • Function: Gain(auto/manual), Range(auto/manual), Shift(auto/manual), White/Black line Support speed sensor, Water temperature

Specifications:

  • Cartography Brand: C-Map
  • Screen Size: 8"
  • Touchscreen: No
  • Transducer Included: No
