Garmin ECHOMAP UHD2 7" sv Ice Fishing Bundle w/ECHOMAP UHD2 73sv GT10HN-IF Transducer [010-02684-35]

Regular price
$899.99
Sale price
$899.99
Regular price
Terms & conditions
Details

ECHOMAP™ UHD2 7" sv Ice Fishing Bundle with ECHOMAP™ UHD2 73sv & GT10HN-IF Transducer

Designed for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.

Features:

  • Built with a bright 7” touchscreen display and keyed assist
  • Included transducer so you see what’s below
  • Built-in flasher
  • Garmin Navionics+™ maps with 23,000+ lakes
  • Rugged, portable carrying case

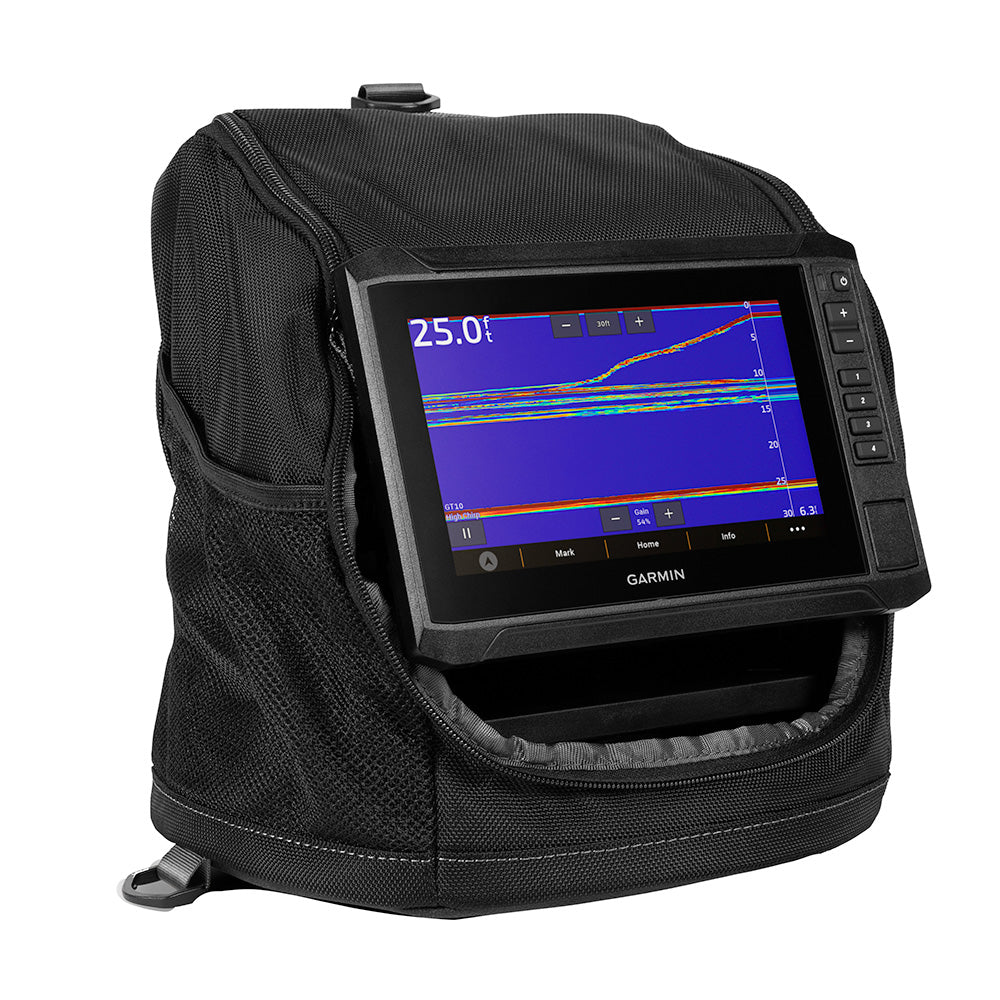

ECHOMAP UHD2 Chartplotter

The 7” ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat (additional accessory purchase required).

Ice Fishing Transducer

This bundle includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 degrees), and it provides crisp, clear fish arches with excellent target separation.

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Supports Scanning Sonar

ECHOMAP UHD2 73sv also supports ClearVü™ and SideVü™ scanning sonars for nearly photographic images of what’s below the boat (transducer sold separately).

Carrying Case

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

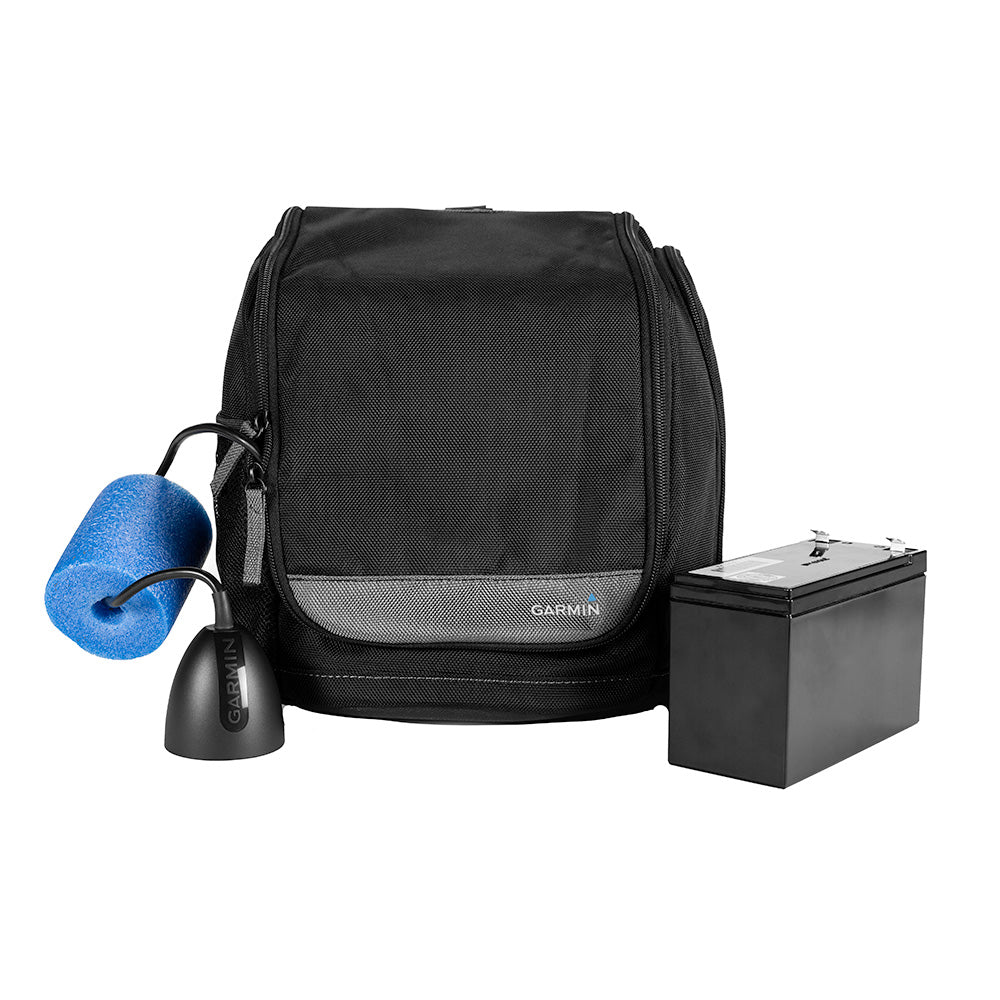

In the Box:

  • ECHOMAP™ UHD2 73sv chartplotter
  • GT10HN-IF ice fishing transducer
  • Tilt/swivel mount
  • Portable bag
  • Base/handle
  • Foam float
  • Power cable
  • Rechargeable battery
  • Battery charger
  • Documentation

General Specifications:

  • Dimensions: 10.5 x 9.5 x 10.5 in. / 26.7 x 22.9 x 26.7 cm
  • Touchscreen: Yes
  • Display Size: 6.1 x 3.4, 7.0" in. / 15.5 x 8.7, 17.8 cm
  • Display Resolution: 800 x 480 pixels
  • Display Type: WVGA, IPS
  • Weight: 11 lbs / 5.0 kg
  • Waterproof: IPX7

Maps & Memory:

  • Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
  • Waypoints: 5000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100

Ice Fishing Details:

  • Battery Type, Size: SLA, 7Ah
  • Bag Size: Small
  • Included Transducer: GT10HN-IF
  • Transducer Holding Feature: Foam float

Sensors:

  • Has Built-in Receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 Compatible: Yes
  • GPS: Yes
  • Glonass: Yes
  • Galileo: Yes
  • Beidou: Yes
  • Supports Waas: Yes
  • Supports Multi-Band, Multi-Constellation GPS: Yes

Built-in Maps:

  • Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
  • Garmin Navionics+ Inland & Coastal: Yes (see Additional)
  • Garmin Navionics+ (Inland): Yes (see Additional)

Optional Map Support:

  • Garmin Navionics+: Yes
  • Garmin Navionics+ VIision+™: Yes
  • TOPO: Yes
  • Standrad Mapping: Yes
  • Garmin Quickdraw Tours: Yes

Chartplotter Features:

  • ActiveCaptain® Compatable: Yes

Electrical Features:

  • Power Input: 9 to 18 Vdc

Sonar Features & Specifications:

  • Displays Sonar: Yes
  • Power Output: 500 W
  • Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
  • ClearVü™: Built-in 260/455/800/1000/1200 kHz
  • SideVü™: Built-in 260/455/800/1000/1200 kHz
  • Panoptix™ Sonar: Yes
  • Livescope; Yes

Connections:

  • NMEA 2000® Ports: Yes
  • Garmin Marine Network Ports: 1
  • 12-Pin Transducer Ports: 1
  • Bluetooth® Pairing: Yes
  • Ant+ (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): Yes

Additional:

  • Garmin Navionics+ Inland & Coastal: 75sv Canada
  • Garmin Navionics + (Inland): 75sv U.S. Lakes

WarningWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

  • Included Transducer: GT10HN-IF
  • Screen Size: 7"
  • Touchscreen: Yes
  • Transducer Included: Yes
  • Box Dimensions: 9"H x 12"W x 17"L WT: 14.2 lbs
  • UPC: 753759322724
