Blue Sea 7047 187 - Series Thermal Circuit Breaker - 135Amp [7047]

$82.95
$82.95
$103.68
Write a Review
Add to wishlist Added to wishlist
Terms & conditions

Terms & Conditions

Gulf Coast Marine outfitters strives to provide you the following:

By agreeing to our terms and conditions, we promise to provide you with the best pricing possible, the best experience possible and the quickest shipping possible.

Please read our policies on shipping and returns for further information. In short, most items will ship the same day you place your order (unless they are custom made like clothing, etc.). Most items are open for returns for up to 30 days from date of delivery. Please see our policy on returns for further and more complete  information.
Ask us any Question
Details

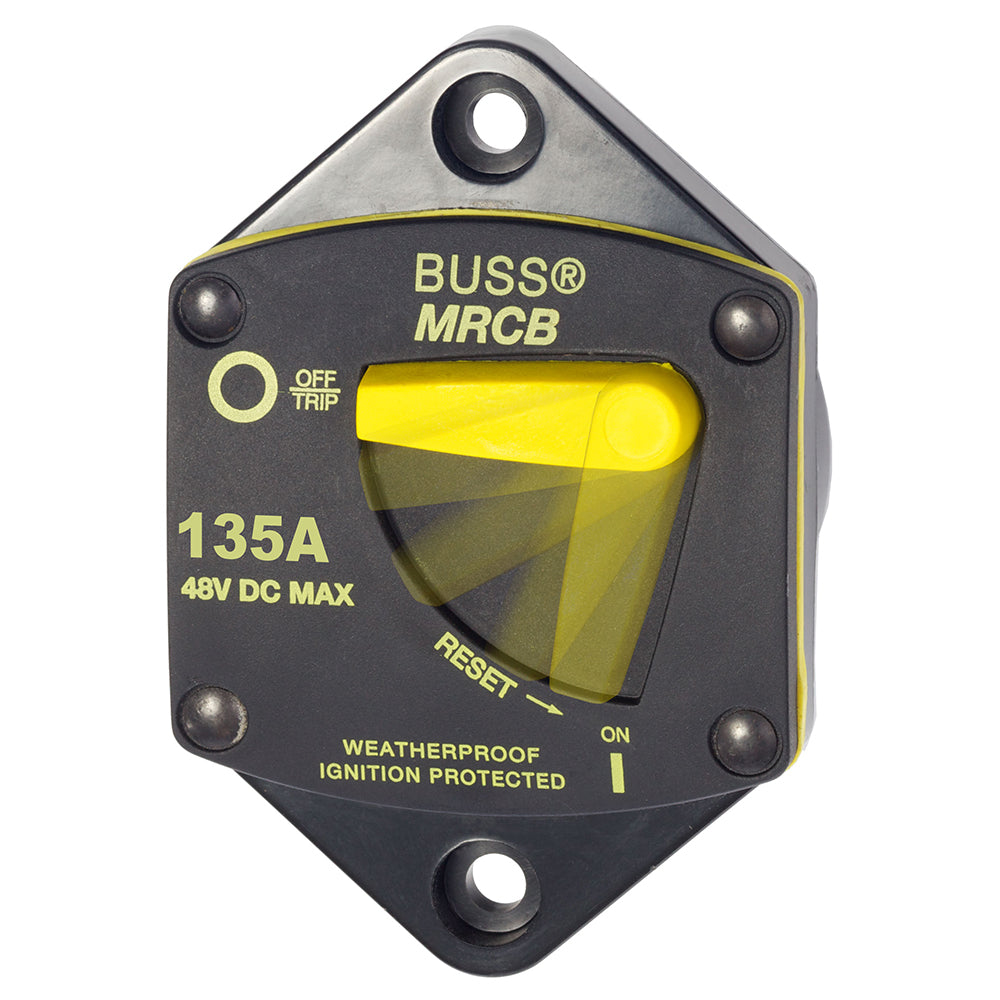

187 - Series Thermal Circuit Breakers - Panel Mount

135 Amp Circuit Breaker

PN:  7047

Features:

  • Combines switching and circuit protection into a single device
  • All components meet SAE J1171 external ignition protection requirements
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Self-trimming case eliminates the need for mounting panels or trim bezels
  • Round case permits easy installation with standard sized hole saw
  • Large clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - safe for installation aboard gasoline powered boats

Specifications
Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free
Type: Thermally Responsive Bi-Metal Blade
Case Material: Thermoset Polyester
Voltage Rating: 48 Volts DC Maximum
Interrupt Rating: 5,000 Amperes @12 Volts DC
  3,000 Amperes @24 Volts DC
  1,500 Amperes @42 Volts DC
Operating Temperature Range: -25C° to +82C°

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 135a
  • Box Dimensions: 3"H x 4"W x 7"L WT: 1 lbs
  • UPC: 632085070472
