Vesper Cortex H1P Portable/Wireless/Rechargeable Handset w/Charging Cradle [010-02816-10]

Regular price
$649.99
Sale price
$649.99
Regular price
Terms & conditions
Details

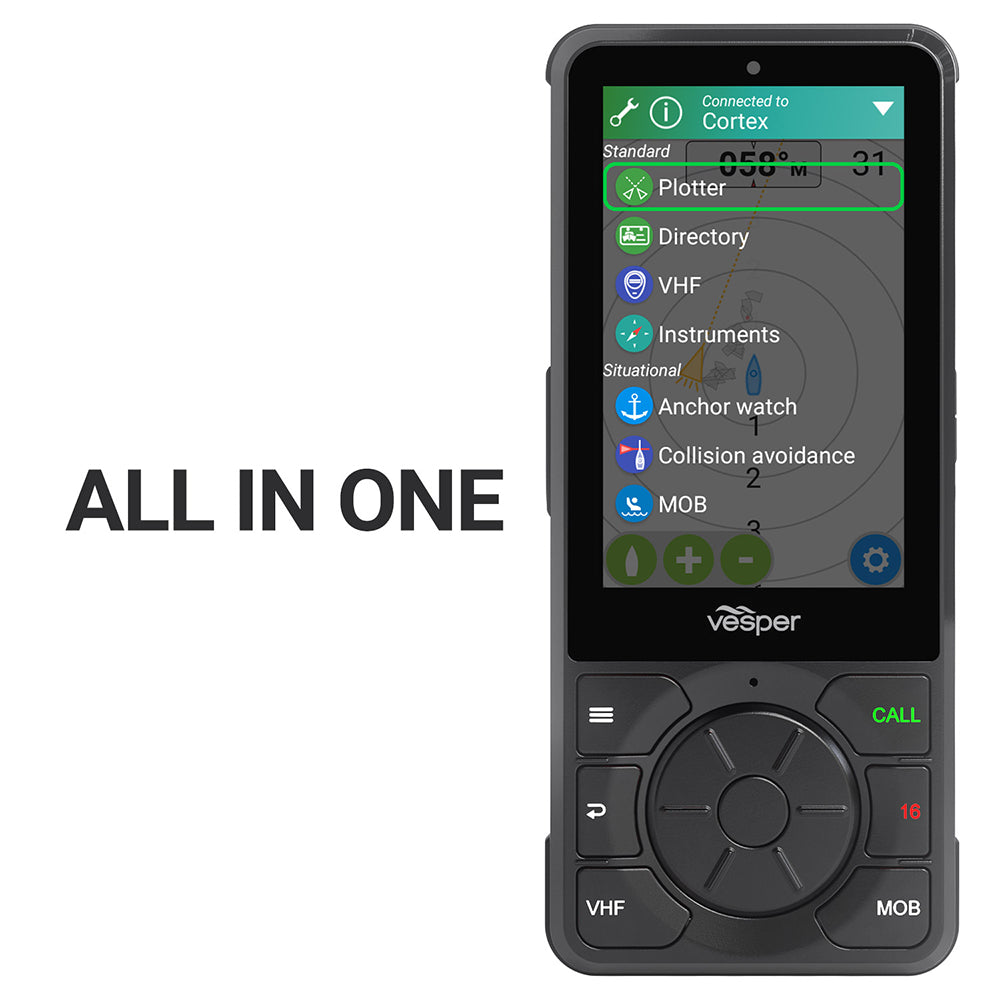

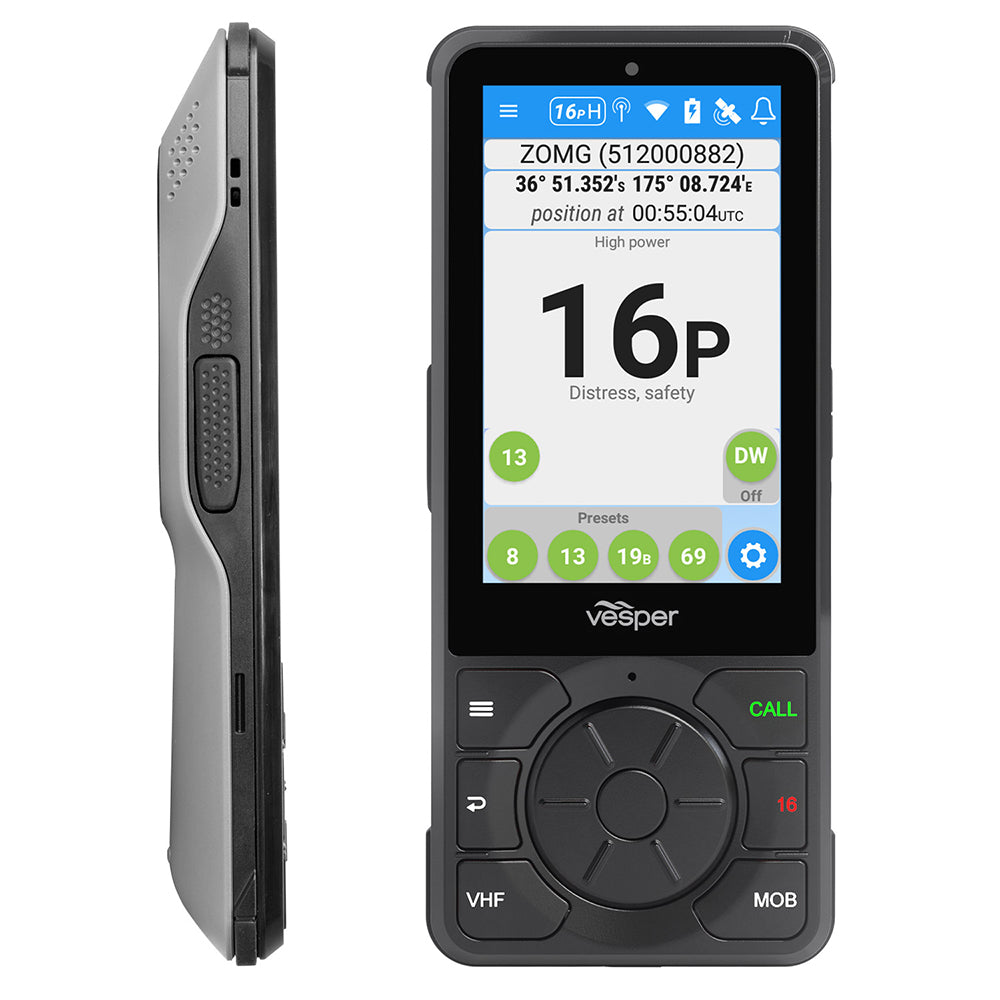

Cortex H1P Portable/Wireless/Rechargeable Handset with Charging Cradle

For the ultimate safety, add a battery-powered rechargeable handset to your Cortex. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat.

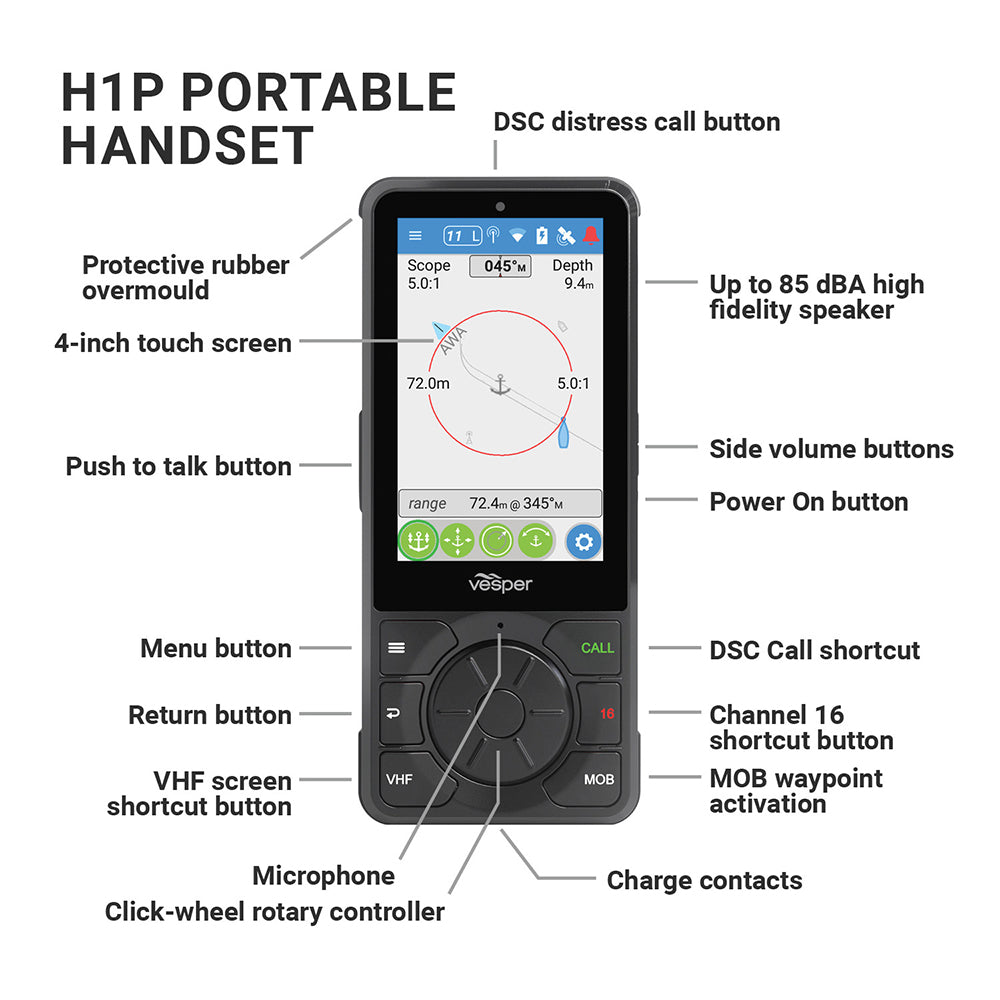

Features:

  • Rechargeable, the portable battery-powered handset for connection to Cortex M1
  • 4-inch multi-touch display with gorilla glass for maximum durability
  • Single hand operation with the unique click wheel and dedicated buttons
  • Wet and gloves capable touchscreen
  • Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun.
  • 85 dBA of crystal-clear audio

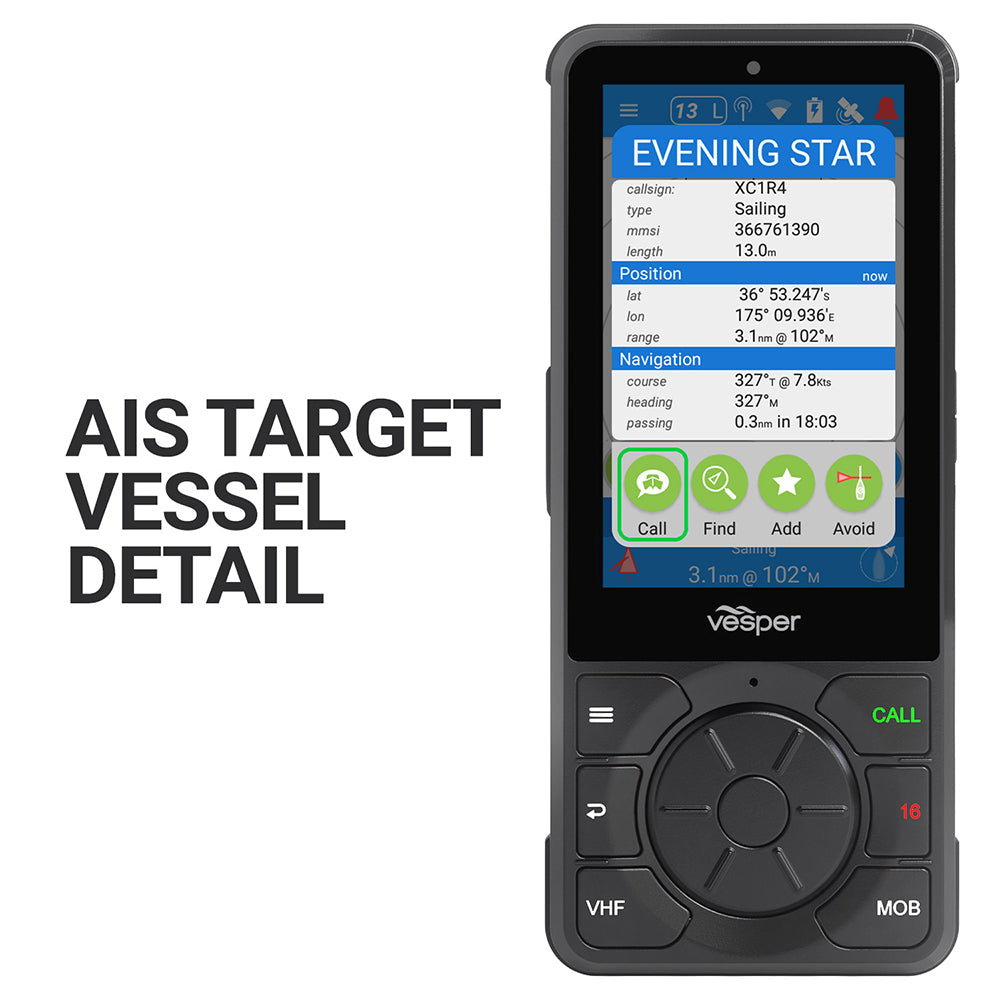

  • Combined AIS and VHF display with voiced alerts

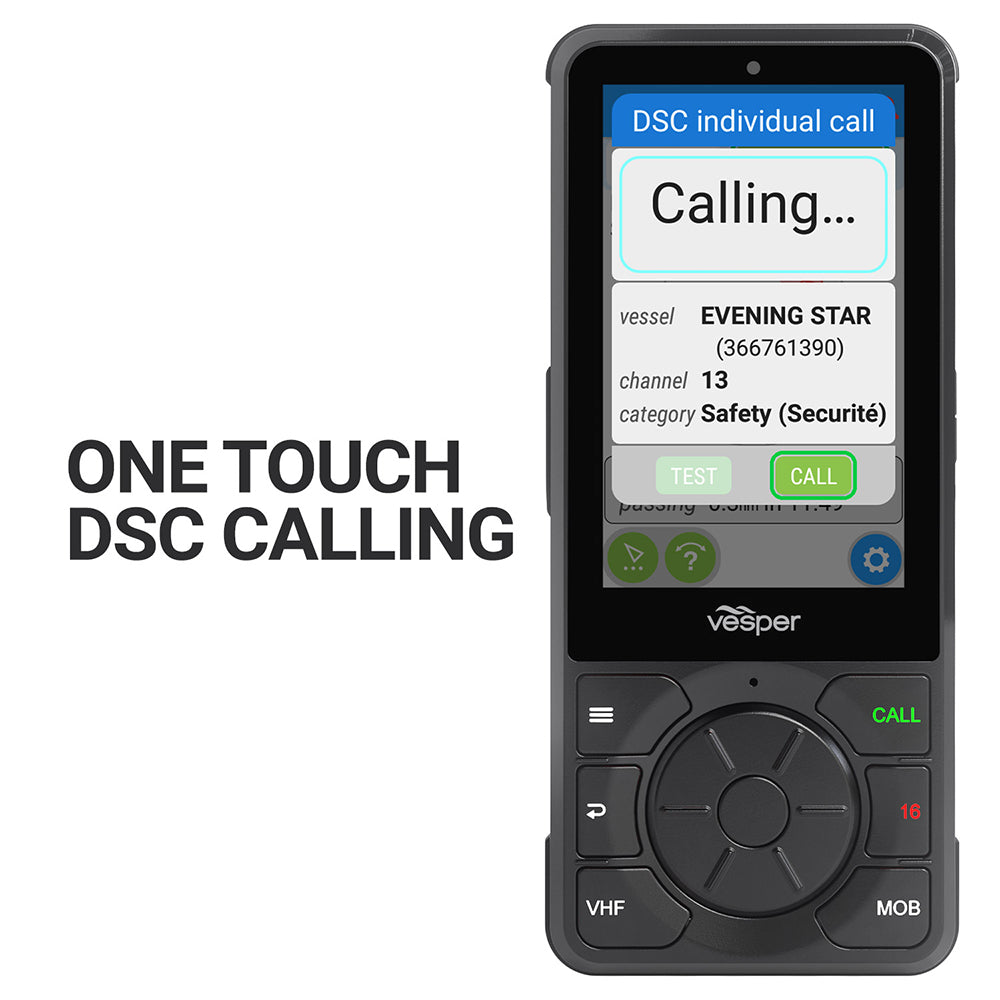

  • Touch a vessel onscreen for direct calling (DSC)
  • Add 10 handsets to Cortex M1

What's In The Box?

  • H1P Portable Rechargeable Handset
  • Charging H1P Cradle
  • Non-Powered H1 Cradle

Specifications:

  • Size: 164.8 mm x 71.8 mm x 21.4 mm (6.4882” x 2.8268” x 0.8425”)
  • Power Supply: 12V, 1A max, 200mA nominal, 12 -24V compatible
  • Battery: Lithium Polymer, 2 hour full charge, >12 hours nominal operation
  • Weight: 235g
  • Environmental: Waterproof (IPX7)
  • Operating Temperature:  -25°C to +55°C (-13°F to 131°F)
  • Audio: 3W Class D amplifier, THD < 5% @ 85dBA

Display:

  • Screen: LCD TFT Si, 640 x 800, 24bit Color
  • Touch: Capacitive, optically bonded to LCD. Glove and salt water operable
  • Backlight: 600 cd/m2
  • Ambient light sensor for auto dimming

Quick Guide (pdf)
Brochure (pdf)
