Trident Marine 2" x 50 Coil Type A2 Fuel Fill Hose [327-2006]

Regular price
$939.95
Sale price
$939.95
Regular price
$1,843.14
Terms & conditions
Details

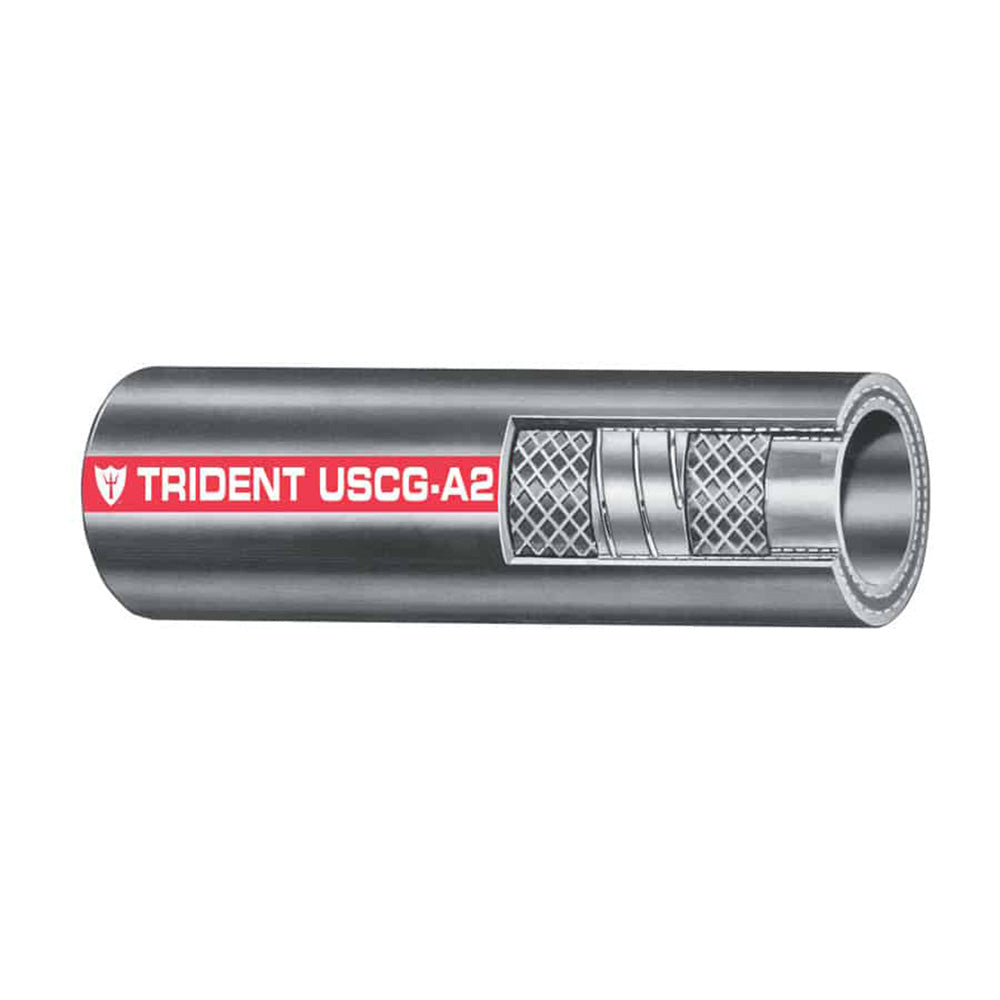

2" x 50' Coil Type A2 Fuel Fill Hose

Trident 2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

  • This hose is built with the best fuel, fire, and age-resistant formulation
  • Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
  • Also, provides excellent bend-ability

Application:

  • Marine Fuel Hose for fill and vent plus diesel distribution
  • Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

  • Tube & Cover: NBR / Neoprene
  • Reinforcement: High tenacity polyester 2 spiral, spring steel helix
  • Temperature Range: -20°F to 212°F (-20ºC to 100ºC)
  • Length: 50 ft. (15.24 m) Coil

Specifications:

  • Inner Diameter: (inch) 2" / (mm) 50.8
  • Outer Diameter: (inch) 2.48 / (mm) 63.5
  • Wall: (inch) 0.25 / (mm) 6.4
  • Working Pressure: (psi) 50 / (mpa) 0.345
  • Bend Radius: (inch) 7.0" / (mm) 178

*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved
