Veratron Pyrometer Sensor - 100-900C/250-1650F [N03-320-264]

$214.19
$214.19
$237.99
Write a Review
Add to wishlist Added to wishlist
Terms & conditions

Terms & Conditions

Gulf Coast Marine outfitters strives to provide you the following:

By agreeing to our terms and conditions, we promise to provide you with the best pricing possible, the best experience possible and the quickest shipping possible.

Please read our policies on shipping and returns for further information. In short, most items will ship the same day you place your order (unless they are custom made like clothing, etc.). Most items are open for returns for up to 30 days from date of delivery. Please see our policy on returns for further and more complete  information.
Ask us any Question
Details

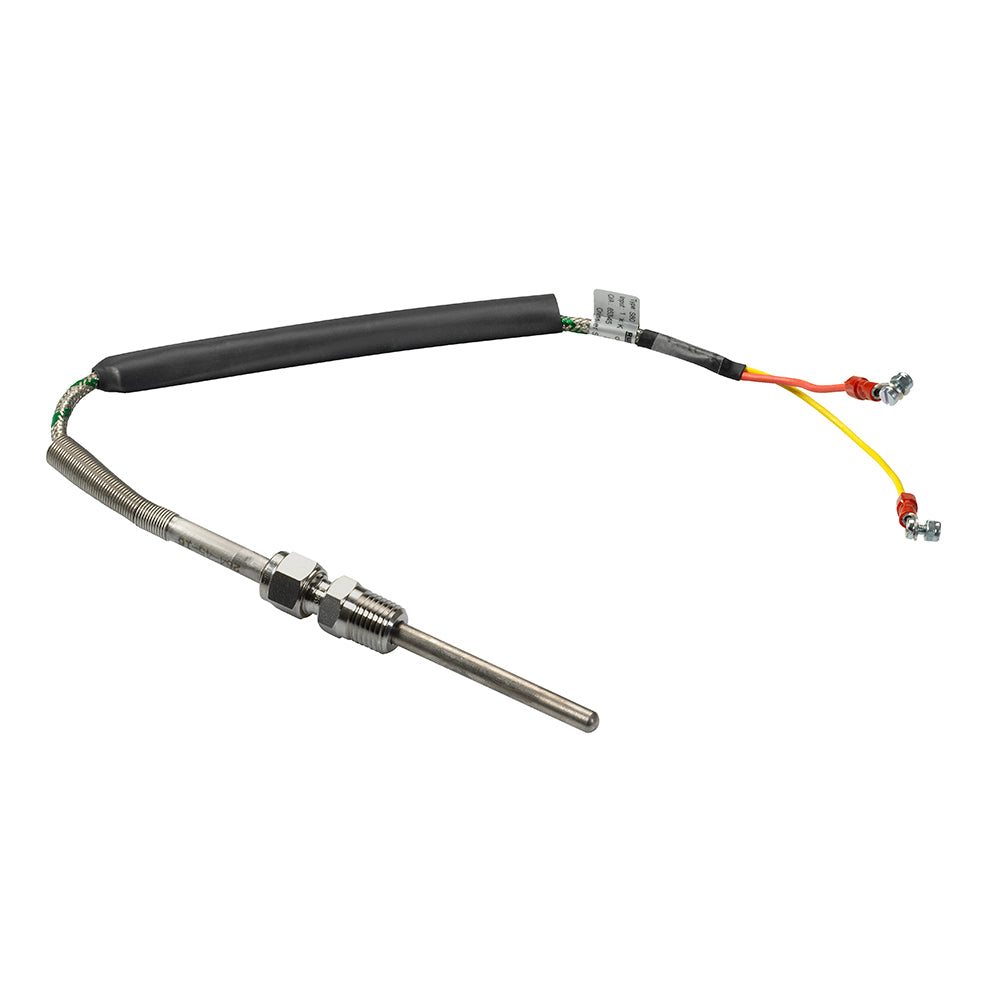

Pyrometer Sensor - 100-900°C/250-1650°F

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

  • Plug-and-Play installation and configuration
  • NMEA 2000® certified

Technical Specifications:

  • Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
  • Input Signal - LIN bus
  • Operating Voltage - 6 - 24 VDC
  • Pyrometer Sensor
  • Thermocoupler Element
  • Measurement Range - 100-900°C/250-1650°F
  • Communication - Analog
  • Signal Output - 0 - 37 MV TC
  • Sensor Connector - Ring Tongue
  • Thread - R 1/4" Male
  • Warning Contact - None
  • Connector Type - Kabeloog

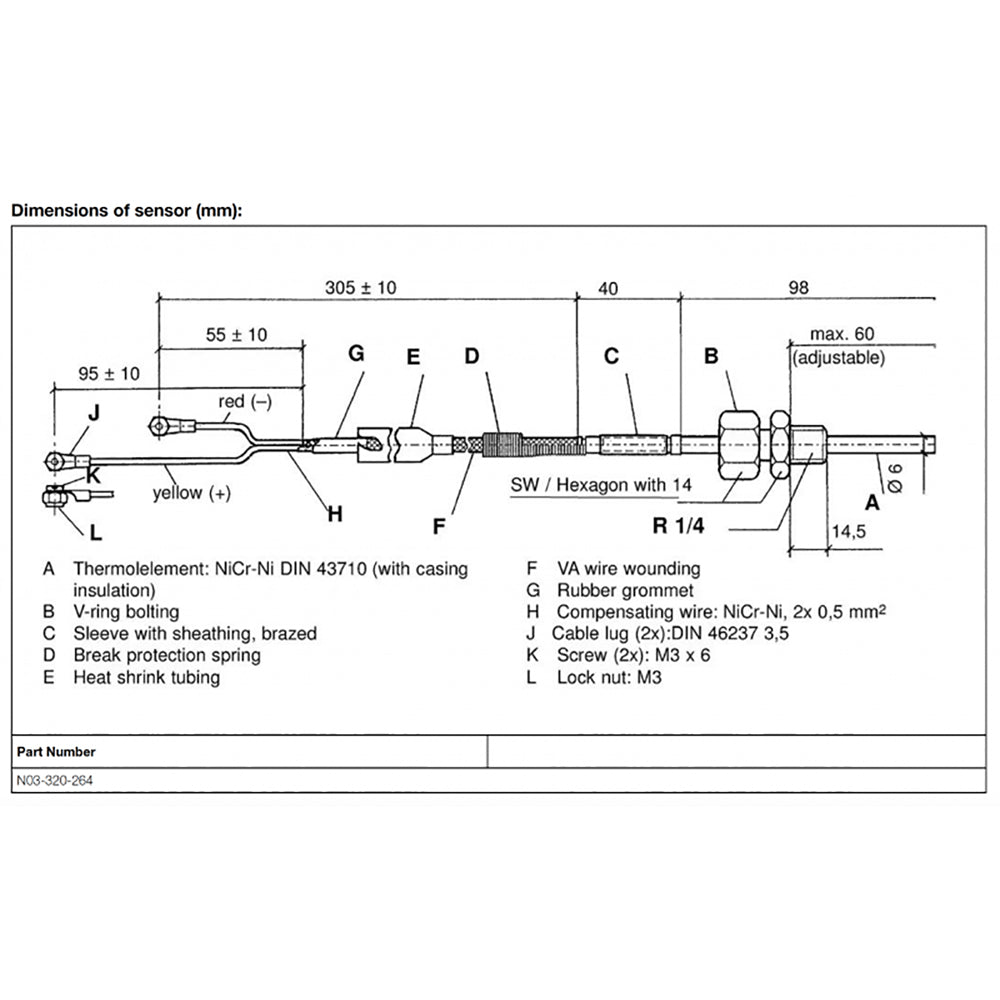

  • Sender element length + thread (L) - Adjustable maximal 60 mm
  • Sensor diameter - 6 mm
  • Torque - 20 Nm

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Diameter (mm): N/A
  • Diameter (Inches): N/A
  • Color: Black
  • Box Dimensions: 1"H x 4"W x 16"L WT: 0.15 lbs
